Original price was: €154,00.€130,00Current price is: €130,00.
Only 2 left in stock

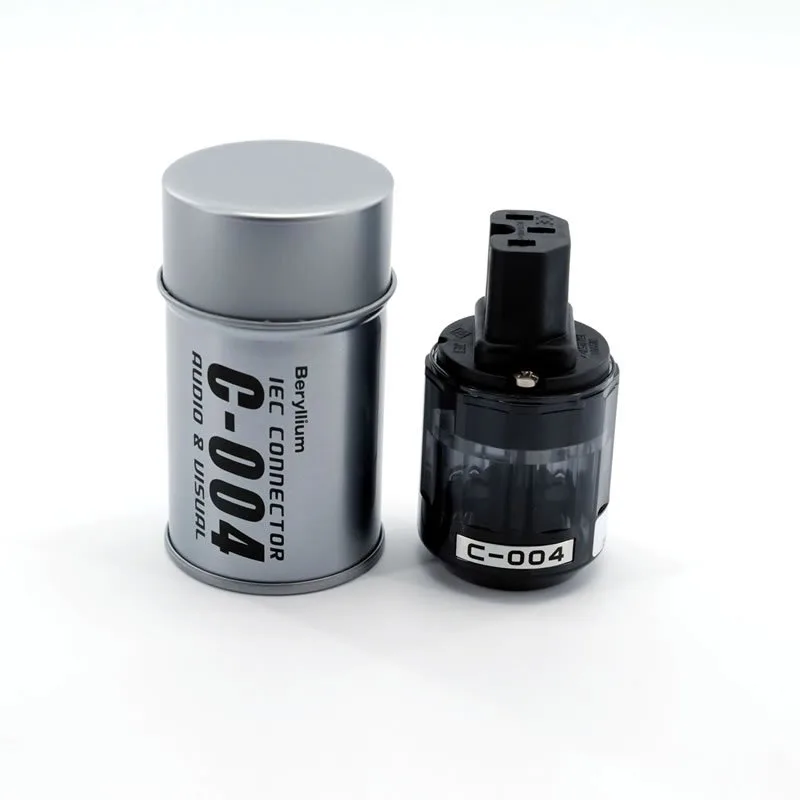

The contacts of P-004/C-004 are heat treated to insure electromechanical integrity. The 1.0mm thick and 6.0mm wide contacts provide maximum contact area.
Concerning the plating, the inner platinum layer is 0.5 microns thick and the outer palladium layer is 0.3 microns thick.
100% Made in Japan
Contacts: Beryllium copper
Plating: Platimum (0.5 micron) + Palladium(0.3 micron)
Body and casing: High density PBT is mixed with 30% glass filler for rigidty, thermal stability and high resonance absorption. Polycarbonate.
Cable O.D. Range: Minimum 6.5 mm / Maximum 17.0 mm
Maximam wire gauge: AWG10(5.5sq)
V/A: 250V 16A CE
